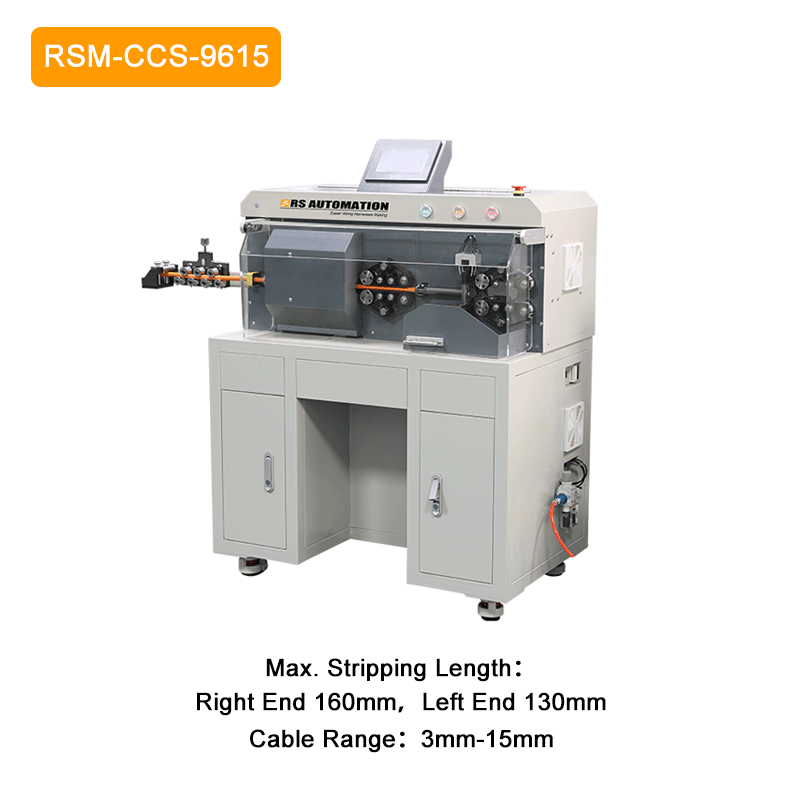

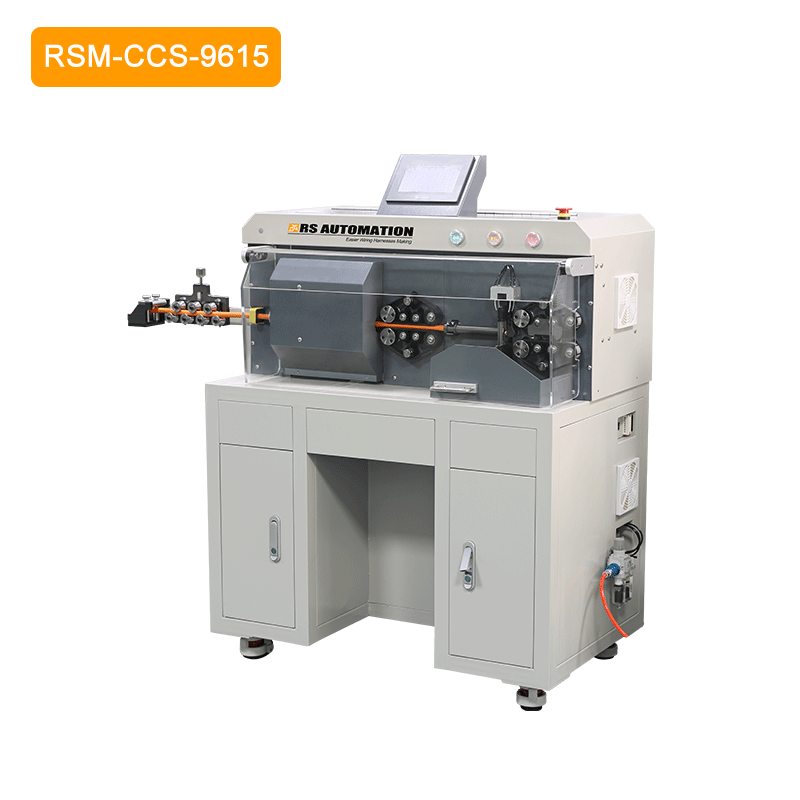

Name: Coaxial /HV Cable Cutting &amp; Stripping Machine RSM-CCS-9615
SKU: 2463
Availability: InStock

Coaxial /HV Cable Cutting & Stripping Machine RSM-CCS-9615

Feature

Widely applicable. Suitable for processing of HV cable, silicone cable, power cord, coaxial cable and multi-core cable (single layer or multi-layers).
High accuracy. Servo motor to guarantee neat cutting edge and high-precision cutting. No damage to conductors.
User-friendly. Intelligent HMI which can easily store 99 memories/recipes and quickly realize different cable processing.

Specification


Model	RSM-CCS-9615
Display Way	7 Inch HMI
Wire Range	New energy lines, Power lines, coaxial lines, multi-core wires, etc
Voltage	AC220V/110V 50/60HZ
Max. Stripping Length	Front End 160mm，Rear End 130mm
Cable Range	3mm-15mm
Stripping Length	50mm-99999mm
Cutting Accuracy	±0.5MM+ Total Length *1‰
Stripping Accuracy	±0.3mm
Cutting Depth Accuracy	0.01mm
Air Source	0.4-0.6 Mpa
Power	2.5KW
Max. Stripping Layers	6 Layers
Drive Mode	Servo Motor Ball Screw Drive Pulley Feed Line
Stripping Mode	Rotary knife + Cutting And Stripping Knife
Productivity	400-700pcs/h（Depending on the type and the length of the cable）
Material	Imported tungsten steel + imported high speed steel
Storage Capacity	99 Kinds Of Processing Parameter Data
Working Environment	5—45℃,Dry,Moderate,Vibration-Free WorkBench
Weight	213KG
Dimension	1000mm600mm1350mm
Other Functions	A number of communication ports are reserved, which can be linked to MES system, take-up machine and cable coiling machine.
