Feature
- Driven by a servo motor,with high accuracy and stable operation
- Quantitative setting,production capacity display
- Full digital adjustment,simple operation
- Classified authority management

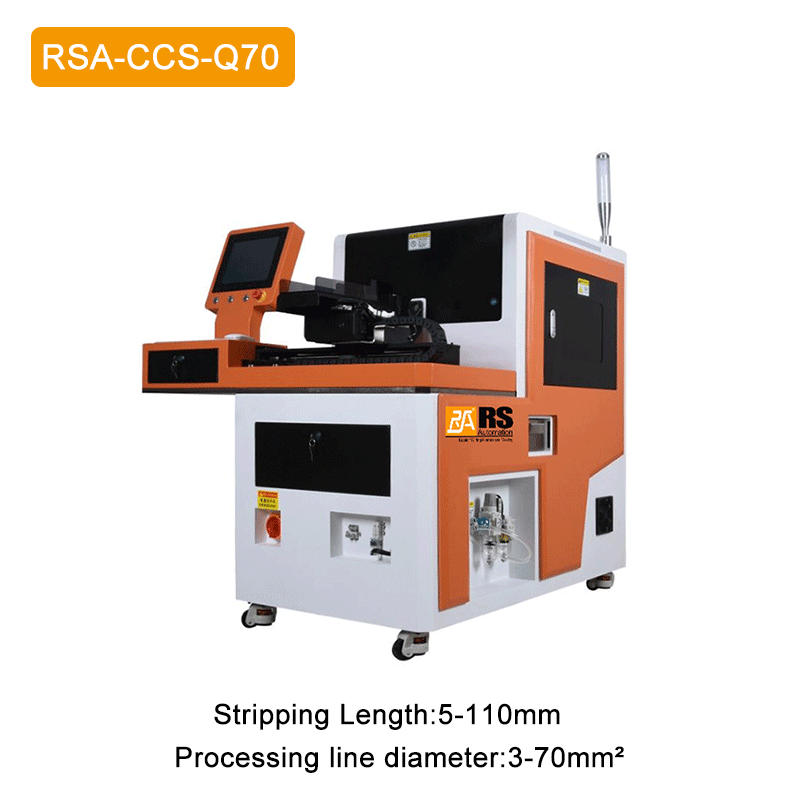

Multi-Layer Shield Cable Stripping Machine RSA-CCS-Q70
- Processing line diameter:3-70 mm²
- Stripping length:5-110 mm
Specification
| Model | RSM-CCS-Q70 |
| Function | Cut the shield braid and peel the metal inner and outer insulation |
| Processing line diameter | 3-70 mm² |
| Stripping length | 5-110 mm |
| Cutting length of the shield braid | 5-100 mm（customized beyond this specification） |
| Voltage | AC 220V 50/60Hz/16A |
| Power | 4 KW |
| Weight | About 200 kg |
| Working air Pressure | 0.5-0.7 mpa |
| Dimension | 1130*1350*1300 mm |
