Feature
- Adopt PLC Control, All processing parameters can be set on HMI.
- Special for big size cable with long stripping length.
- Rotation insulation stripping way to guarantee the smooth cutting edge without hurt of conductor
Feature

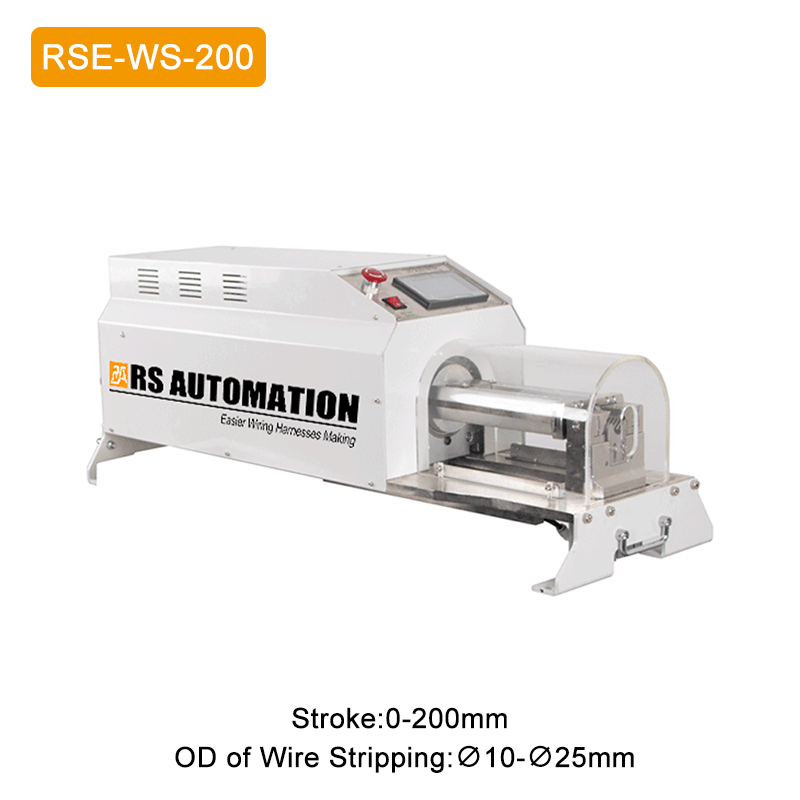

Model | RSE-WS-200 |
Control system | Dedicated controller |
Stripping Method | Rotary |
Stroke | 0-200 mm |
Stripping Length Tolerance | ±0.2 |
OD Of The Cable. | Φ10-Φ25mm |
Speed | 20-40 pcs/min |
Air Pressure | 0.5-0.7 MPa |
Power | 200W |
Voltage | 220V 50-60HZ |
Weight | 91Kg |
Dimension | 1000*450*350mm |
